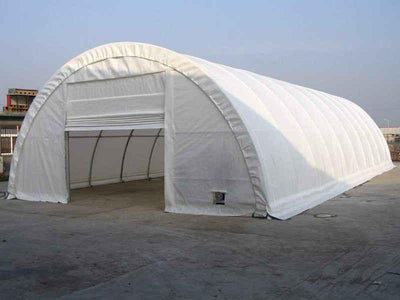

Rhino Commercial Round Truss Building 30'Wx65'Lx15'H

Completely packaged and ready for quick assembly, the frame is the heaviest available in single tube construction. All frame components are made from heavy galvanized materials. Main Cover, Door, and All Fabrics are made from Long-Life UV Resistant, Fire Retardant Polyethylene with woven backing.

All fabric components feature heat-welded seam construction. Unit features a unique dual cover tensioning system that allows quick adjustment both front-to-back and side-to-side. The easy-up Door can be winched up from outside the building with little to no effort. Wind release flaps on both sides allow for wind absorption. Long lasting cover design provides for run-off of rain, or melting snow, to avoid water getting in through the perimeter of the cover. Each unit comes equipped with both a set of 14 earth anchors and a set of Auger style anchors to secure the unit at all strategic points.

Heavy Commercial Round Features

Heavy-Duty Galvanized Finish - All Steel Frame

Roll Up Mechanical Door

Wind Brace Support on Each Corner

Double Cover Tensioning System

Complete Anchoring System Included

10oz., CPAI-84 Fabric Cover and Doors

Assembles in 8 Hrs

Arch spacing every 48 inches (4 foot spacing’s)

Specification

Nominal Size: 30’ Wide x 65’ Long x 15’ High

Arches: Eleven (11) on 79" spacing 2 3/8" Diameter Frame members

Standard End Door Size: 11' Width x 12'6" Height

Mechanical Roll Up Design

Available Colors: Outer Colors: White

All Interiors: White Only

Shipping Weight: 3172 Lbs. in Two (2) Crates

Weight Shipped via motor freight

Box Dimensions: Box 1: 9.6' Long x 2.4' Wide x 2.3' High

Box 2: 8.9' Long x 2.4' Wide x 2.3' High

Main Cover: UV protected 22 mil, fabric backed poly. 10oz. weight

Fire Retardant Standard: Main Cover & Doors meet CPAI -84 Section 5

Anchors: Eighteen (18) 36" Anchors & Eighteen (18) Augers Included

Rhino Commercial Round Truss Building 30'Wx65'Lx15'H (White)
