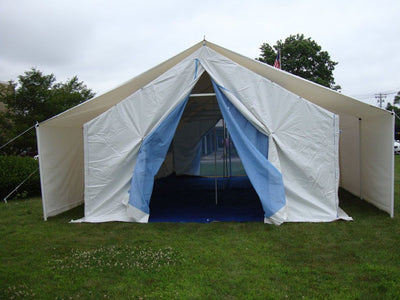

Rhino U.N. Disaster Relief Tent House 18'Wx32'Lx15'H

The double fly cover helps reduce heat gain inside the main tent and also provides water run off so that the roof windows can stay open at all times for maximum ventilation. This model has been a popular choice among relief agencies, specifically the U.N. The frame members slide into each other so there is no need for hand tools. Unlike other products, no drilling or field cutting is required. All frame components are made from heavy duty Structural steel. Main cover and doors are made from long life UV Resistant, Fire Retardant PVC Vinyl Fabric that is CPAI-84 rated. All fabric components feature heat-welded seam construction. Unit features PVC door flaps with mosquito screen. Each door has Velcro hold-ups for securing them up during use. The tent also includes a fabric floor kit with a rubber bottom that is both heavy duty and comfortable to sit on. Each unit comes with an anchor system complete with stakes for keeping the outside fly from touching the inner shelter.

Disaster Relief Tent Features

Two (2) PVC Fabric Doors With Screen

Heavy duty 1 5/8" Dia. Structural Steel Frame

Doublefly Cover Design

Velcro Windows With Mosquito Screen

Roof Truss and Removable Center Supports

Fabric Floor Kit Included

Complete Anchoring System Included

18 oz. CPAI-84 PVC Vinyl Cover and Doors

Specifications

Nominal Size : 18’ Wide x 32’ Long x 15’ High

Arches: Five (5) on 48” Spacing 1 5/8” Frame Members

Standard End Door Size: Two (2) 16’ Wide x 13' High

Available Colors: Outer Colors: White

All Interiors: White Only

Shipping Weight: 1,090 lbs shipped in 2 Boxes and 7 Bags * Shipped via Motor Freight

Main Cover: UV Protected PVC Material 18.1 0z. Weight

Fire Retardant Standard: Main Cover & Doors meet CPAI -84 Section 5

Anchors: Eight(8) Stake in Anchors

Windows: Eight (8) 3' High x 4' Long Side Windows

Eight (8) 3' High x 2' Long Roof Windows

With Velcro Hold Ups and Mosquito Net Screening

Rhino U.N. Disaster Relief Tent House 18'Wx32'Lx15'H (White & Blue)
